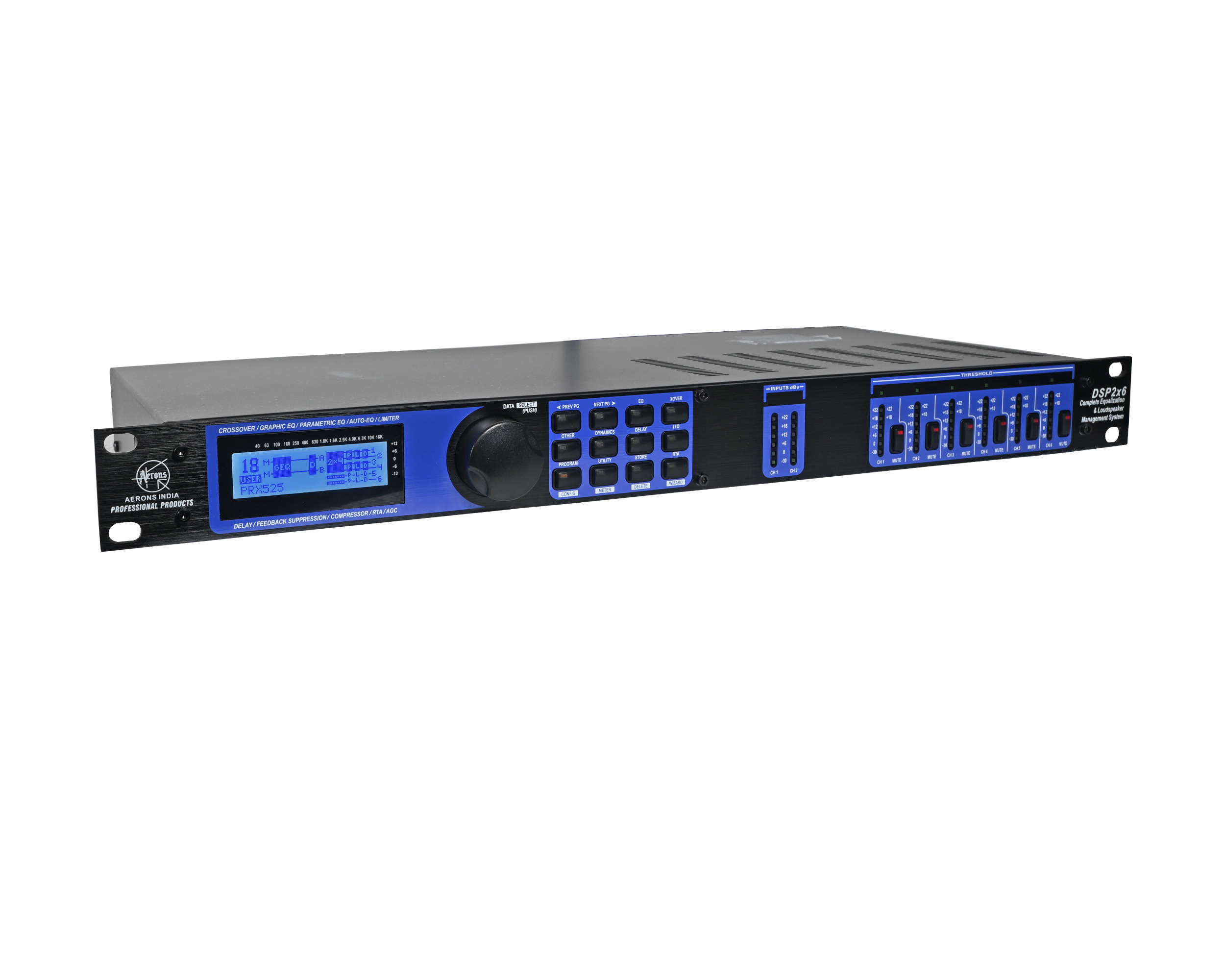

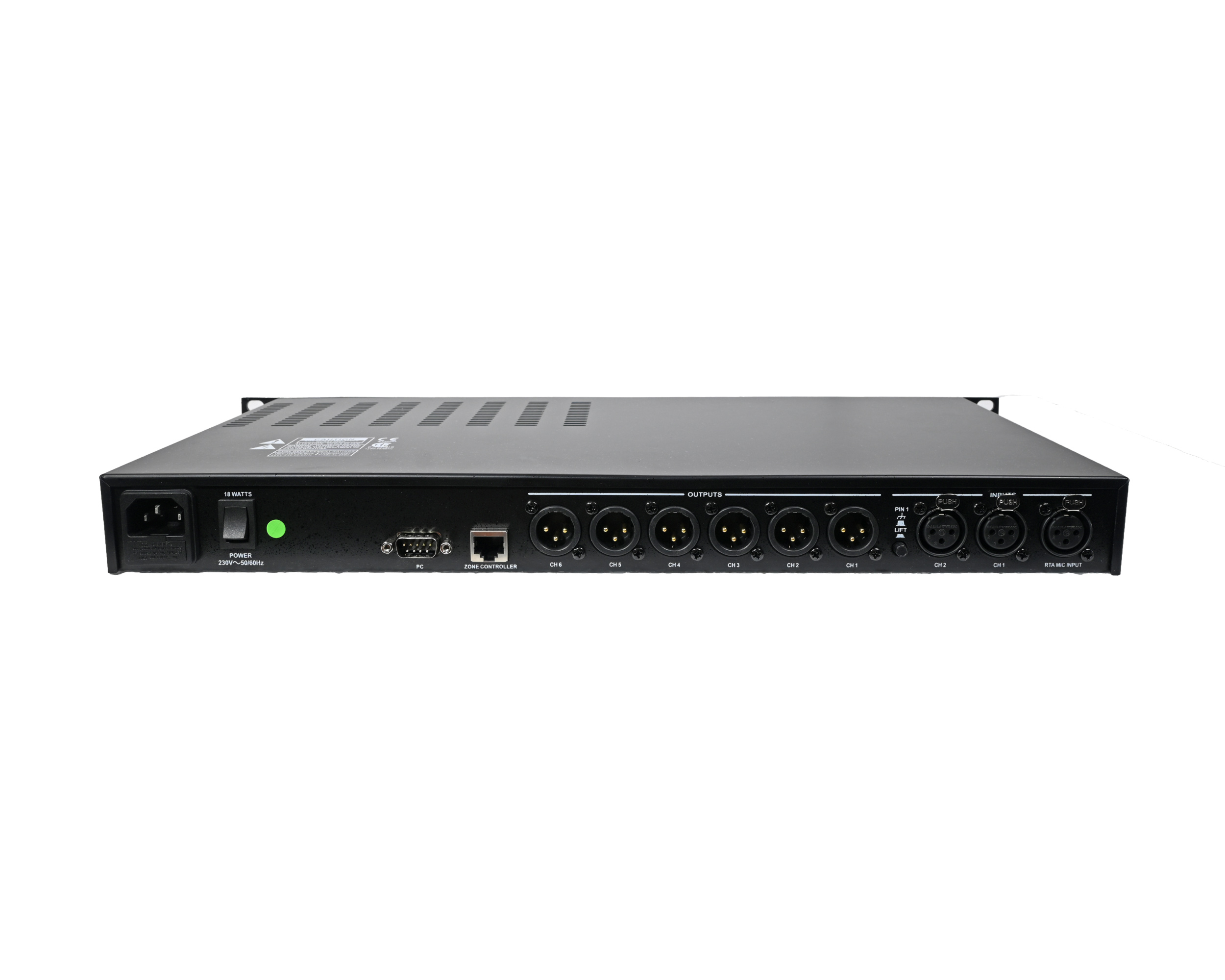

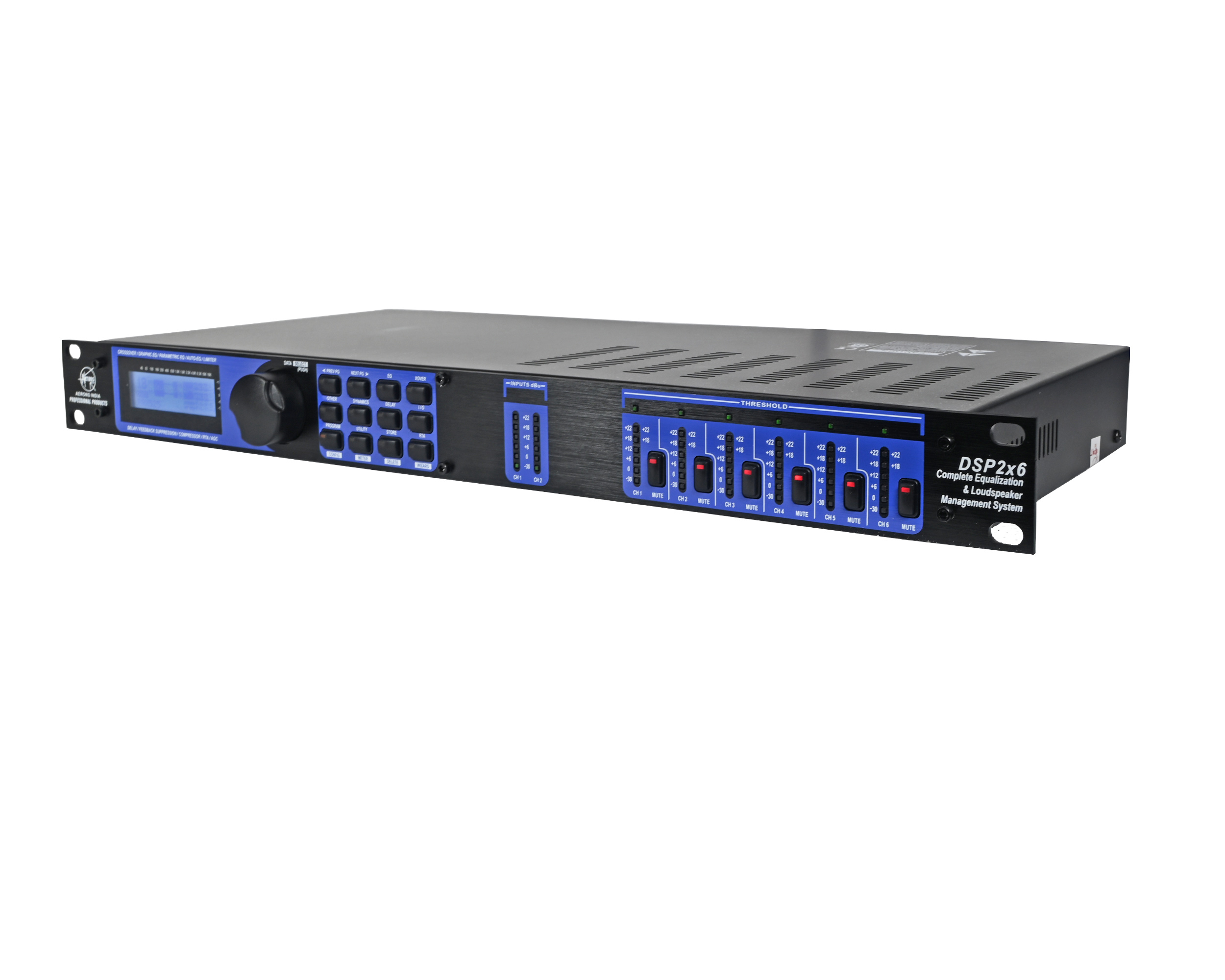

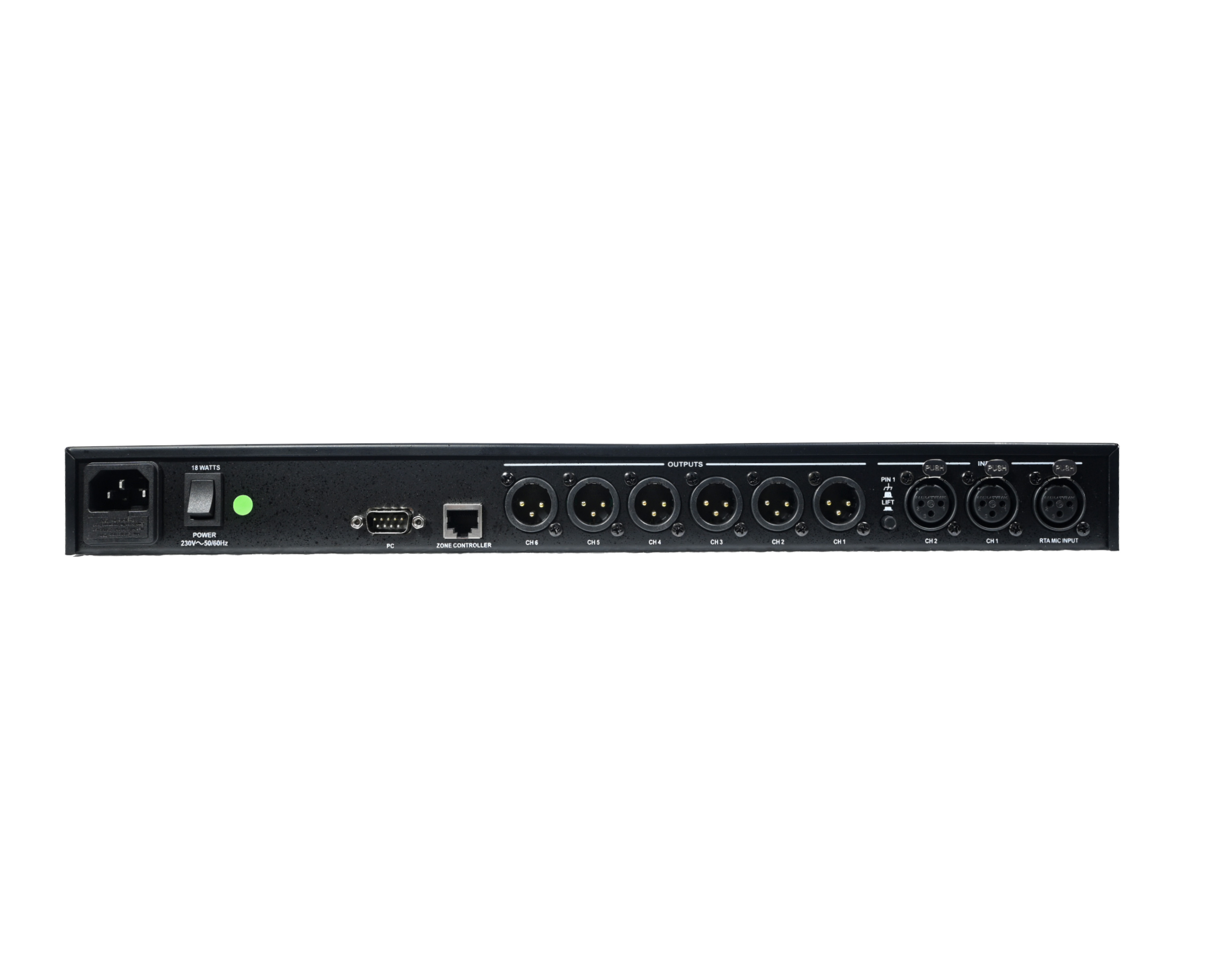

DSP 2X6
  • Independent Input and Output Processing
  • Auto EQ Function
  • Graphic and Parametric EQ
  • Full Bandpass, Crossover, and Routing Configurations
  • 2.7 Seconds of Alignment and Zone Delay





       WHATSAPP CATALOG AND PRICE

DSP 2X6

FEATURES

  • Independent Input and Output Processing
  • Auto EQ Function
  • Graphic and Parametric EQ
  • Full Bandpass, Crossover, and Routing Configurations
  • 2.7 Seconds of Alignment and Zone Delay
  • RS-232 PC GUI control
  •  Auto Gain Control
  •  Security Lockout
  •  Wall Panel Control Inputs
  • Advanced Feedback Suppression
  •  Pink Noise Generator and full-time RTA

DSP 2X6

 SPECIFICATIONS

  • Input:                                     (2) line inputs. (1) RTA Mic input
  • Input Type:                             Electronically balanced/RF filtered
  • Input Impedance:                   >40k ohm
  • Max Input:                              +30dBu with input jumpers in +30 position
  • CMRR:                                   > 45dB
  • Output:                                   6 total
  • Output Type:                          Electronically balanced, RF filtered
  • Output Impedance:                120ohm
  • Max Output:                           +22dBu
  • Dynamic Range:                    >110 dB A-weighted, >107dB unweighted
  • Frequency Response:           20Hz – 20kHz, +/- 0.5dB
  • Sample Rate:                        48kHz
  • Interchannel Crosstalk:         >110dB, 120dB typical, (input-to-output: >100dB)
