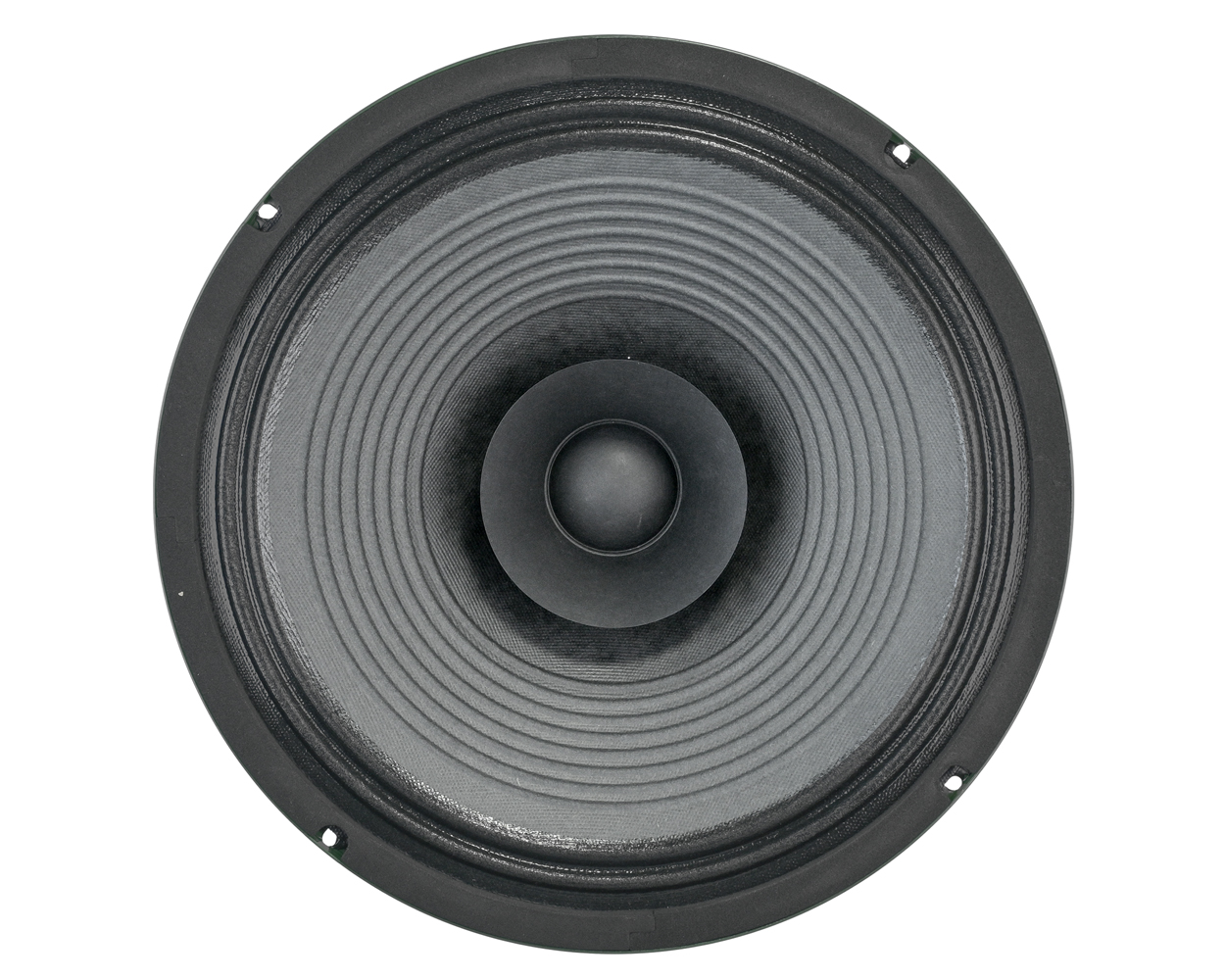

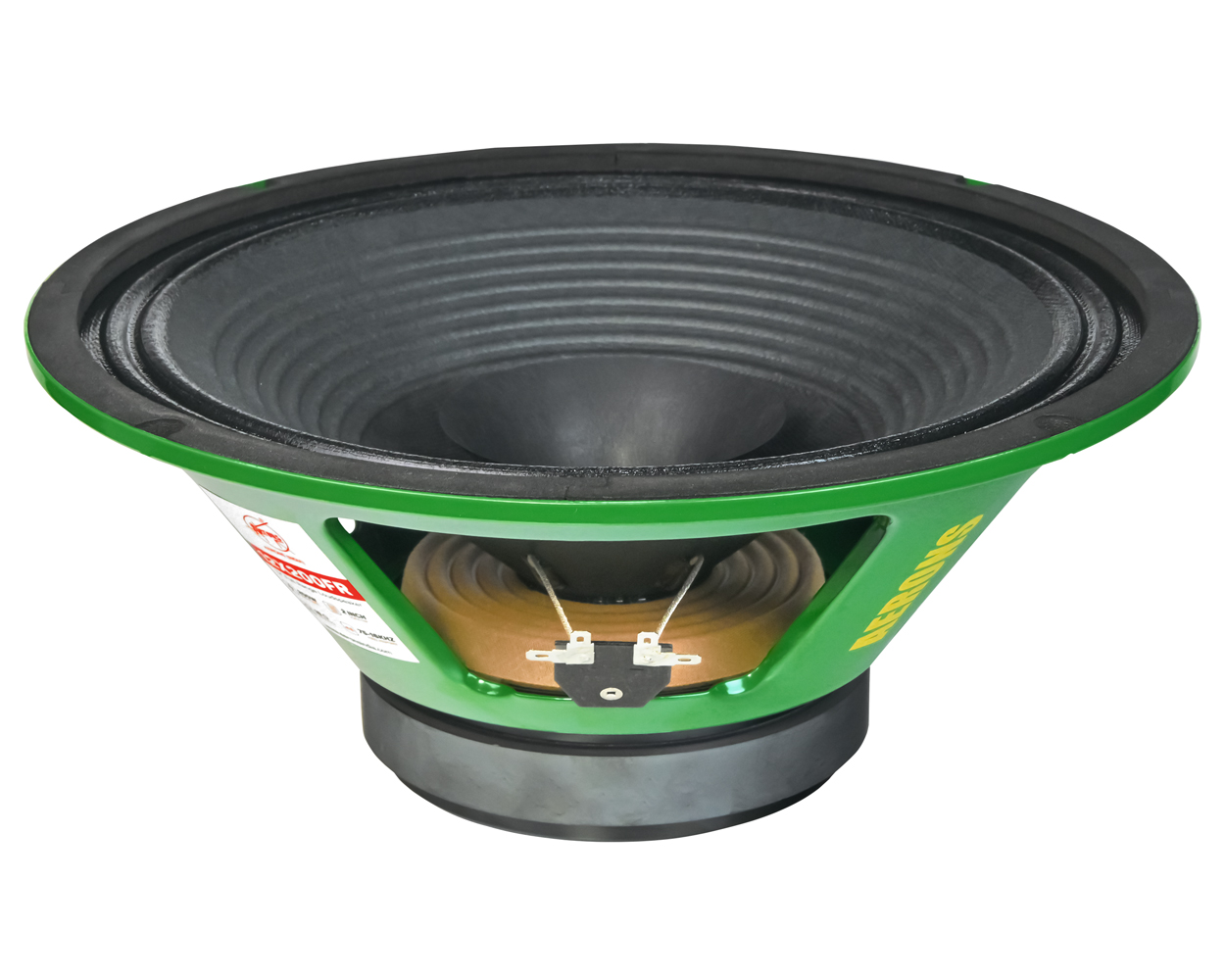

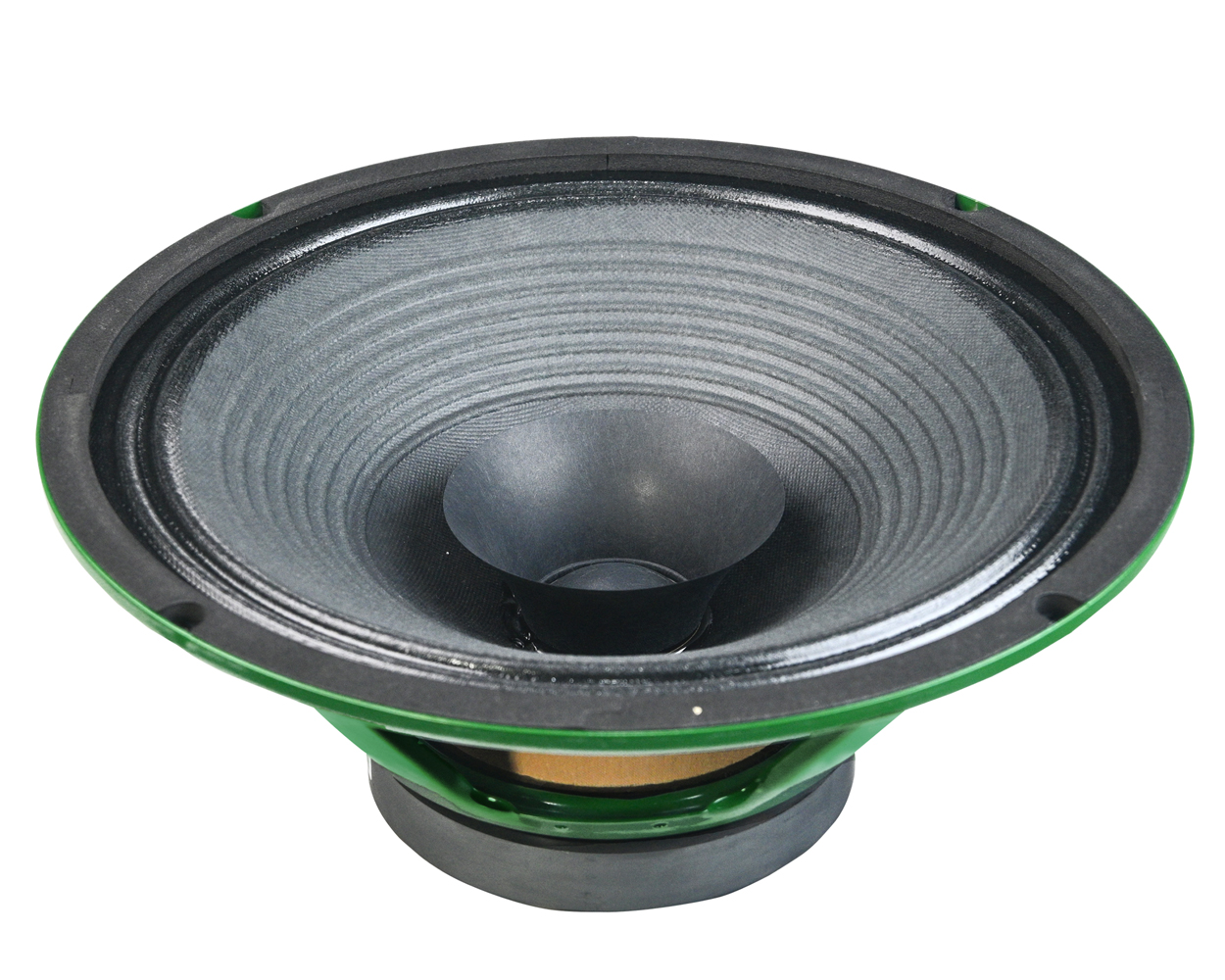

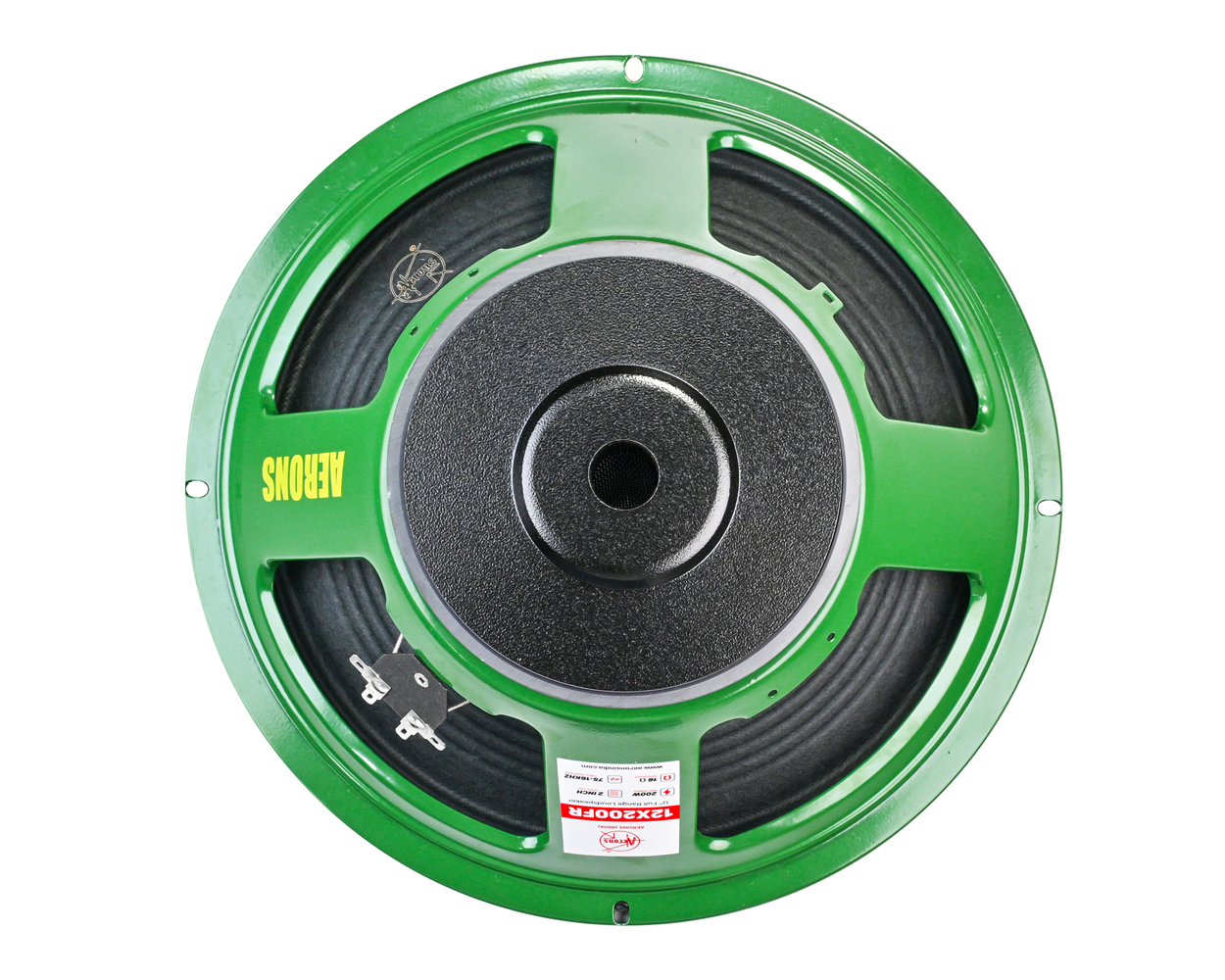

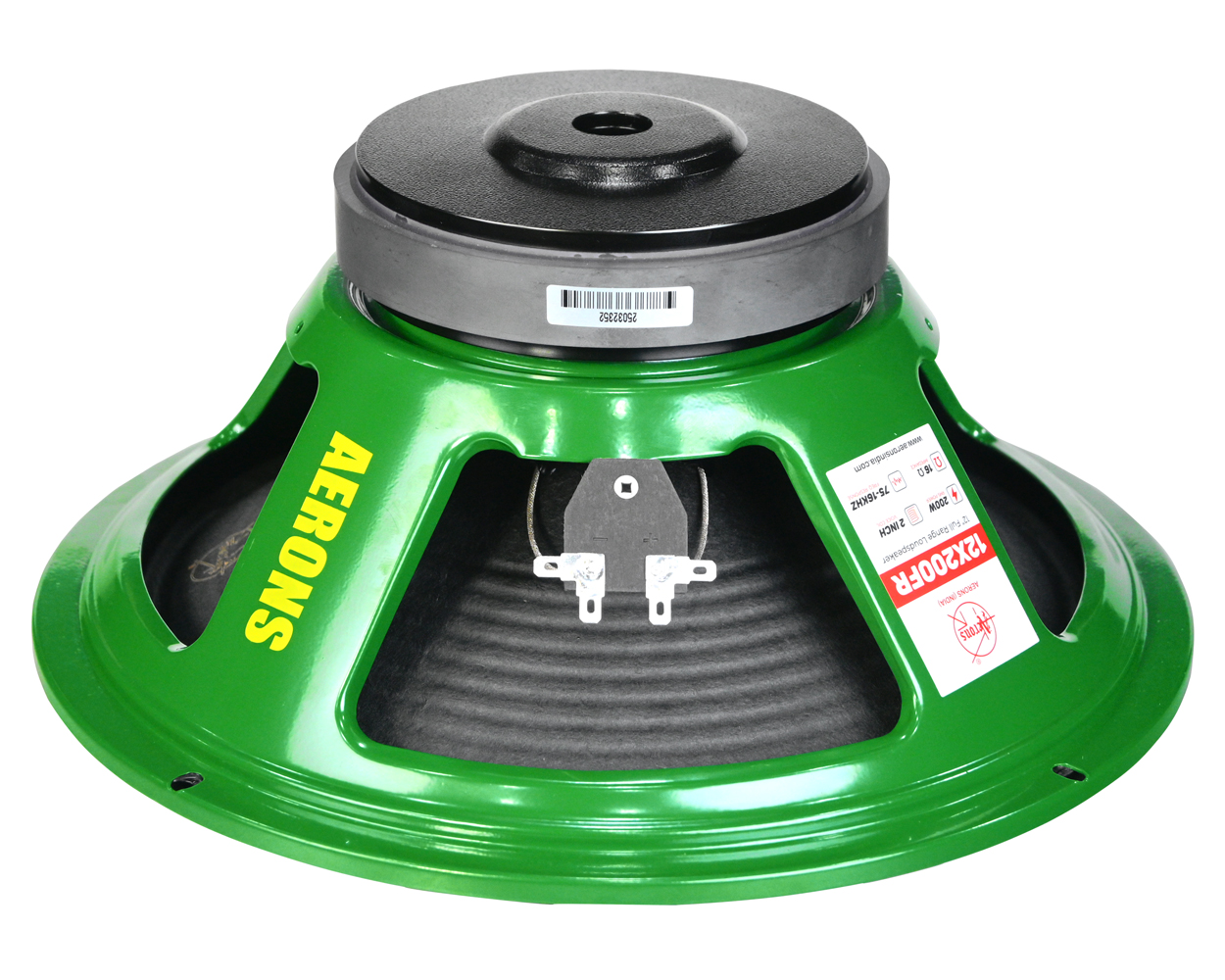

Aerons 12X200FR – Full Range Loudspeaker
The 12X200FR is a reliable 12-inch full-range loudspeaker designed to deliver clear and powerful sound for a variety of applications. With a 200W RMS power handling capacity and 97dB sensitivity, it ensures efficient performance with excellent sound projection. Built with a 2-inch voice coil and 16 Ohms impedance, this speaker offers durability and stability for extended use. Covering a wide frequency range of 75Hz – 16kHz, it delivers balanced lows, crisp mids, and clear highs. Perfect for professional audio setups, public address systems, and custom speaker cabinets.
Key Features:
Engineered by Aerons India, the 12X200FR combines efficiency, durability, and professional-grade performance for your sound system needs.
|
Nominal Diameter |
12inch |
|
Nominal Impedance |
16ohms |
|
Minimum Impedance |
13 ohms |
|
Nominal Power Handling |
200Watts |
|
Continuous Power Handling |
400Watts |
|
Sensitivity |
97 dB |
|
Frequency Range |
75-16 kHz |
|
Voice-coil Diameter |
49.5mm |
|
Voice-coil Material |
CCAW |
|
Voice-coil Winding Depth |
11.5 mm |
|
Effective Diaphragm Diameter |
265 Mm |
|
Kind of layer |
Out |
|
Number of layers |
2 |
|
Top Plate Thickness |
6mm |
|
Spider |
Cotton |
|
Flux Density |
1.15T |
|
Magnet Diameter |
140*20mm |
|
Magnet Material |
Ferrite |
|
Magnet Grade |
Y30 |
|
Magnet Gap Depth |
20mm |
|
Resonance Frequency |
Fs |
75Hz |
|
DC Resistance |
Rte |
13 ohms |
|
Mechanical Factor |
Qms |
11 |
|
Electrical Factor |
Qes |
0.953 |
|
Total Factor |
Qts |
0.920 |
|
BL Factor |
BL |
13.65 T-m |
|
Effective Moving Mass |
Mms |
32.76gr |
|
Equivalent Cas Air Load |
Vas |
64.24liter |
|
Effective Piston Area |
Sd |
0.57 m’2 |
|
Max. Linear Excursion |
Xmax |
3.5mm |
|
Half Space Efficiency |
Eff |
2.30% |
|
Efficiency Bandwidth Product |
EBP |
78.69 |
|
Compliance Value |
Cms |
0.112 |
|
Overall Diameter |
310mm |
|
Buffer Cut-out Dia. |
284mm |
|
Bolt Circle Dia. |
298mm |
|
Bolt Hole Dia. |
5.2mm |
|
Gasket Thickness |
mm |
|
Overall Depth |
137mm |
|
Magnet Dia. |
140mm |
|
Net Weight |
3.6 kg |
