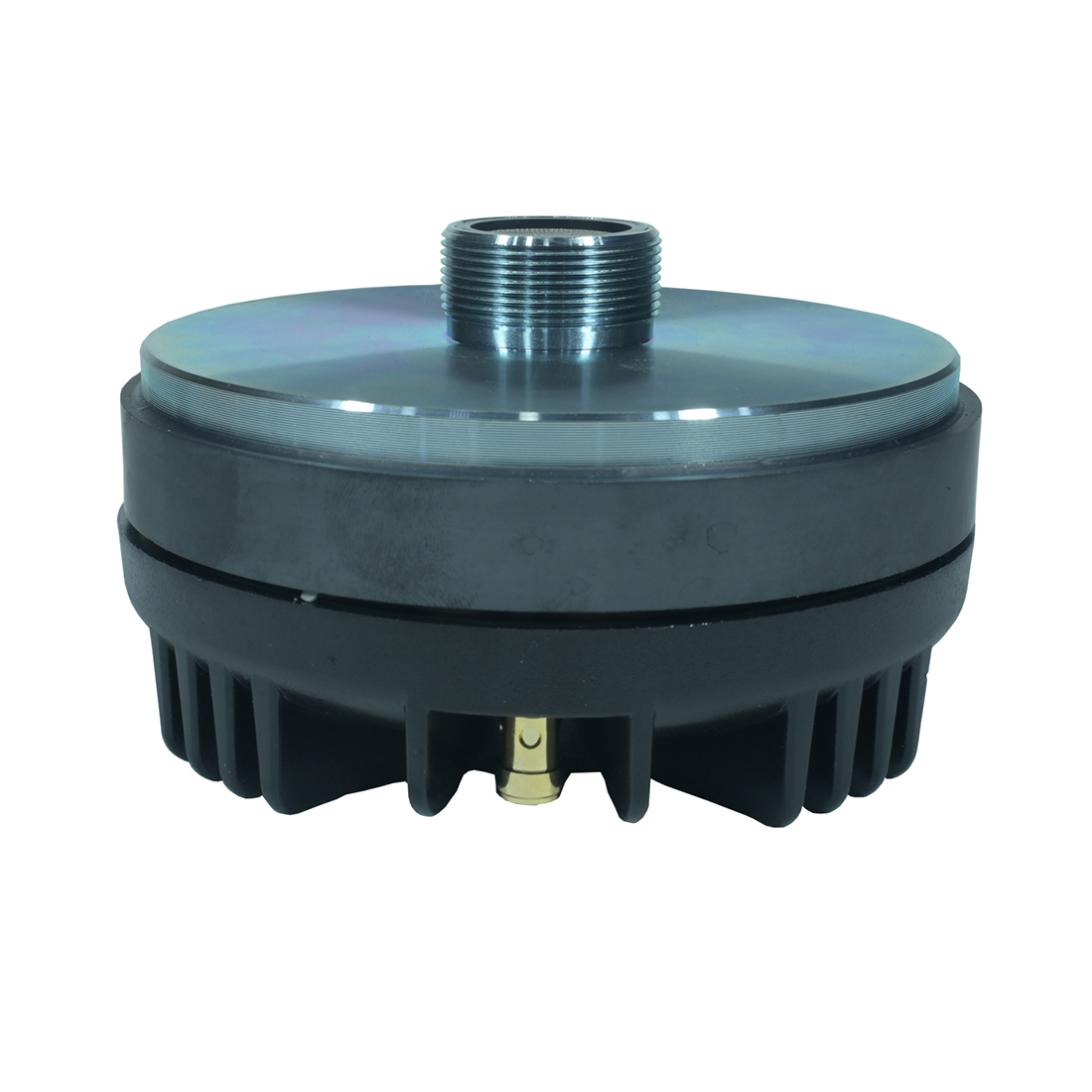

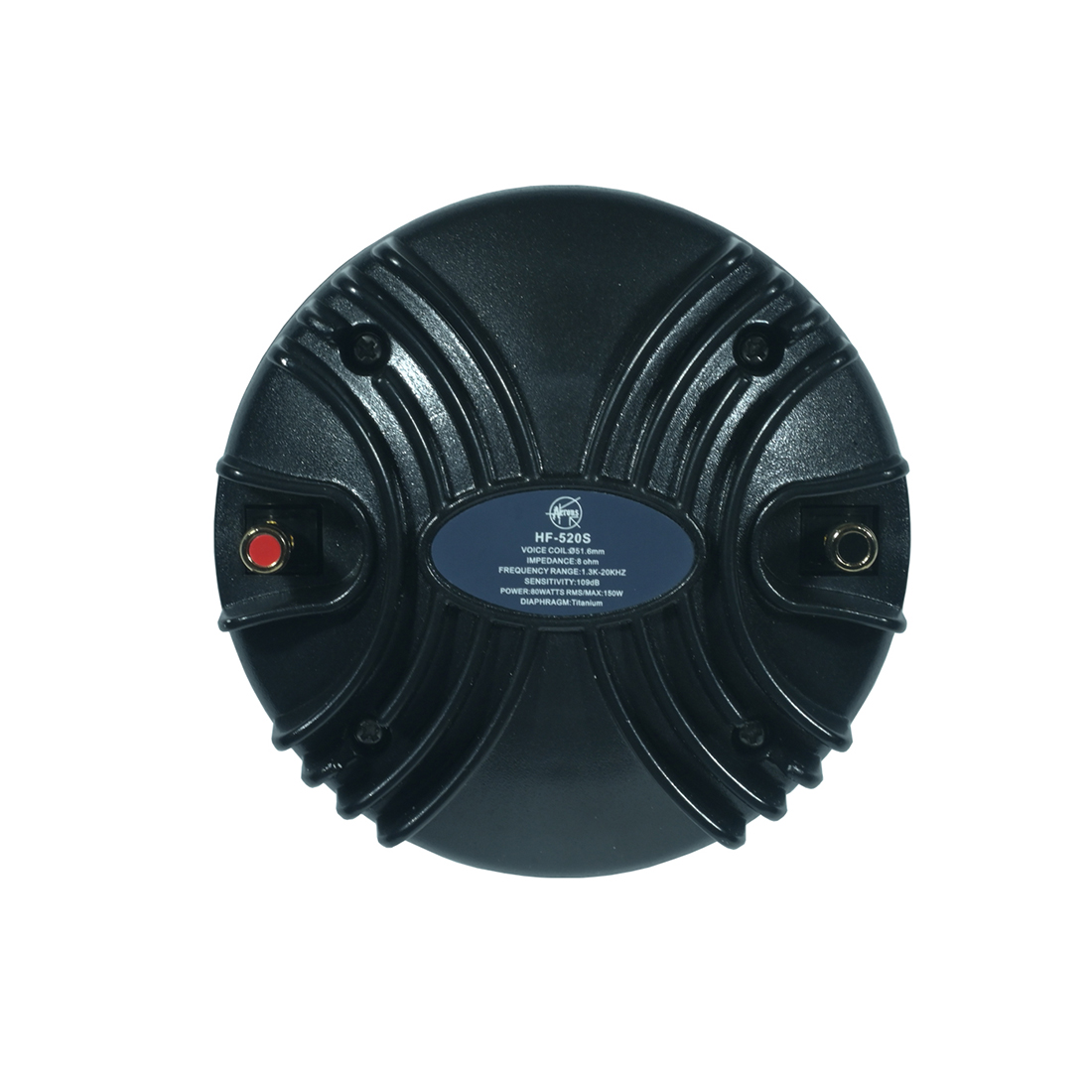

HF-520S
- 80W RMS power
- 1.3K-20KHz Frequency range
- 51.6mm Voice coil
- 109 dB Sensitivity
- Optimized magnet and FEA analysis
HF-520S
- 150W Continuous max power
- 1.3K-20KHz Frequency range
- 51.6mm Voice coil
- 109 dB Sensitivity
- Optimized magnet and FEA analysis
HF-520S
SPECIFICATIONS PARAMETERS
| Throat Diameter |
1 inch (25.4mm) |
| Nominal Impedance |
8ohm |
| Max Power |
150watts |
| Nominal Power |
80watts |
| Sensitivity |
109dB |
| Frequency Range |
1.3K-20KHz |
| Voice-coil Diameter |
51.6mm |
MOUNTING & SHIPPING INFORMATION
| Overall Diameter |
134/5.27 mm/inch |
| Mounting holes Number |
M34 screw |
| Overall Depth |
75/2.95 mm/inch |
| Weight(N.W) |
2.83/6.23 kg/Ibs |
