HDLA210 V2
DUAL LINE ARRAY

  • 2X10”(250mm)/3” voice coil LF driver
  • 1x1.4” (36mm)/3” voice coil HF driver
  • RATED POWER: 800W
  • PEAK POWER: 3200W
  • SENSITIVITY: 101Db 1watt/1Metre
  • MAXIMUM SPL: 134dB
  • FREQUENCY RESPONSE: 55Hz- 18kHz







                    WHATSAPP CATALOG AND PRICE

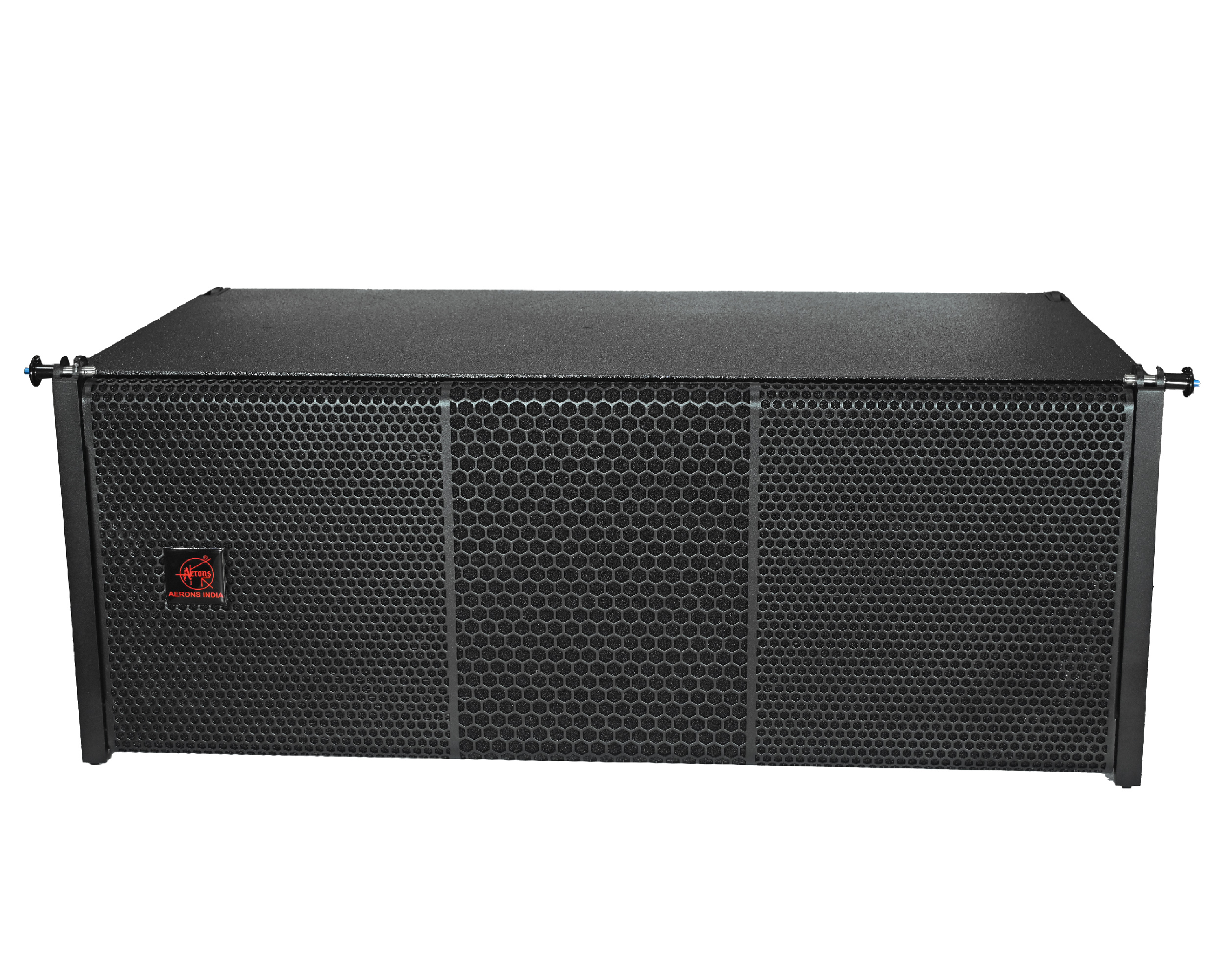

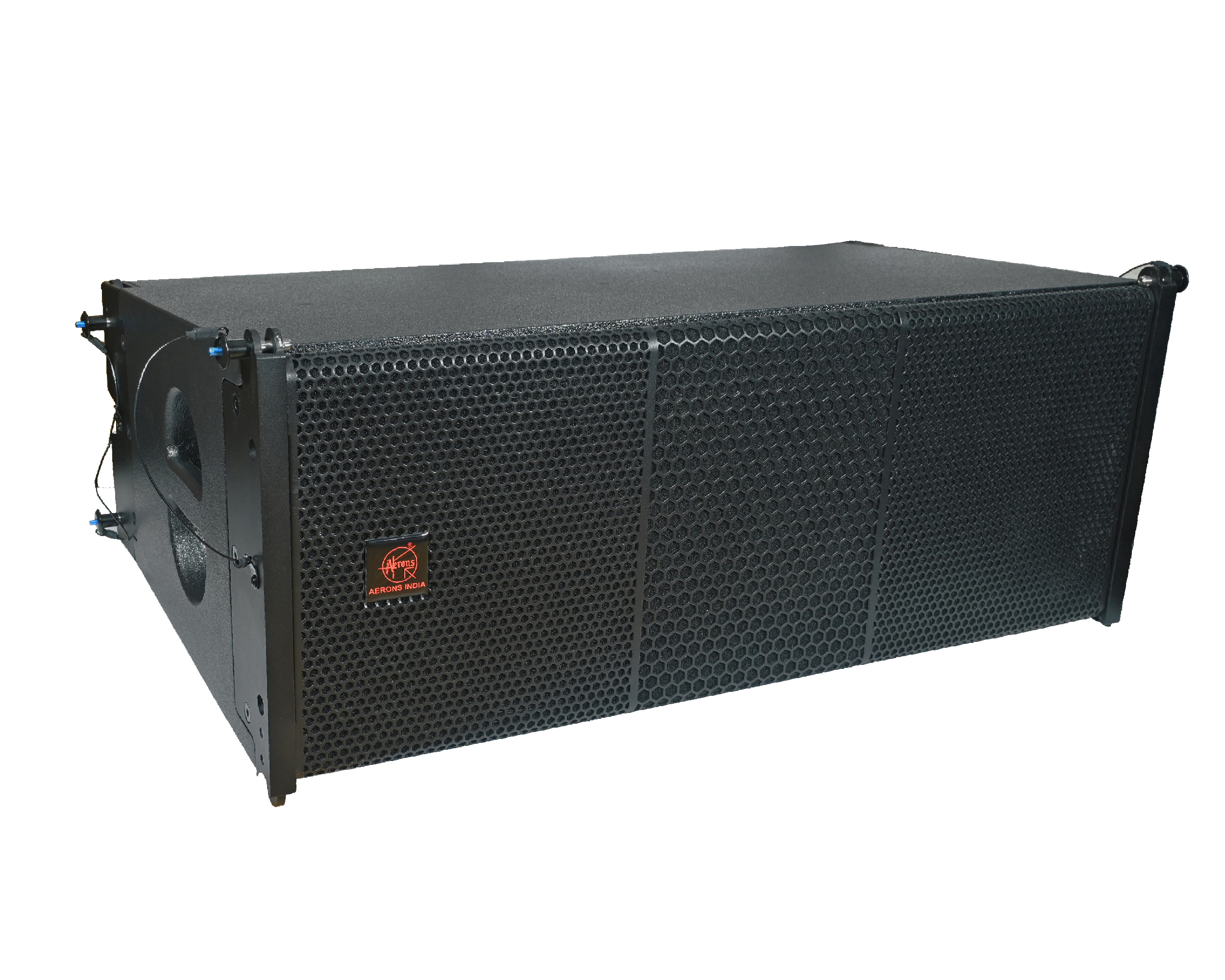

HDLA210 V2

The HDLA210 v2 is a medium-scale line array loudspeaker for long throw distance scale sound reinforcement, uses the HDLA210 v2 flying frame which can be flown in vertical columns

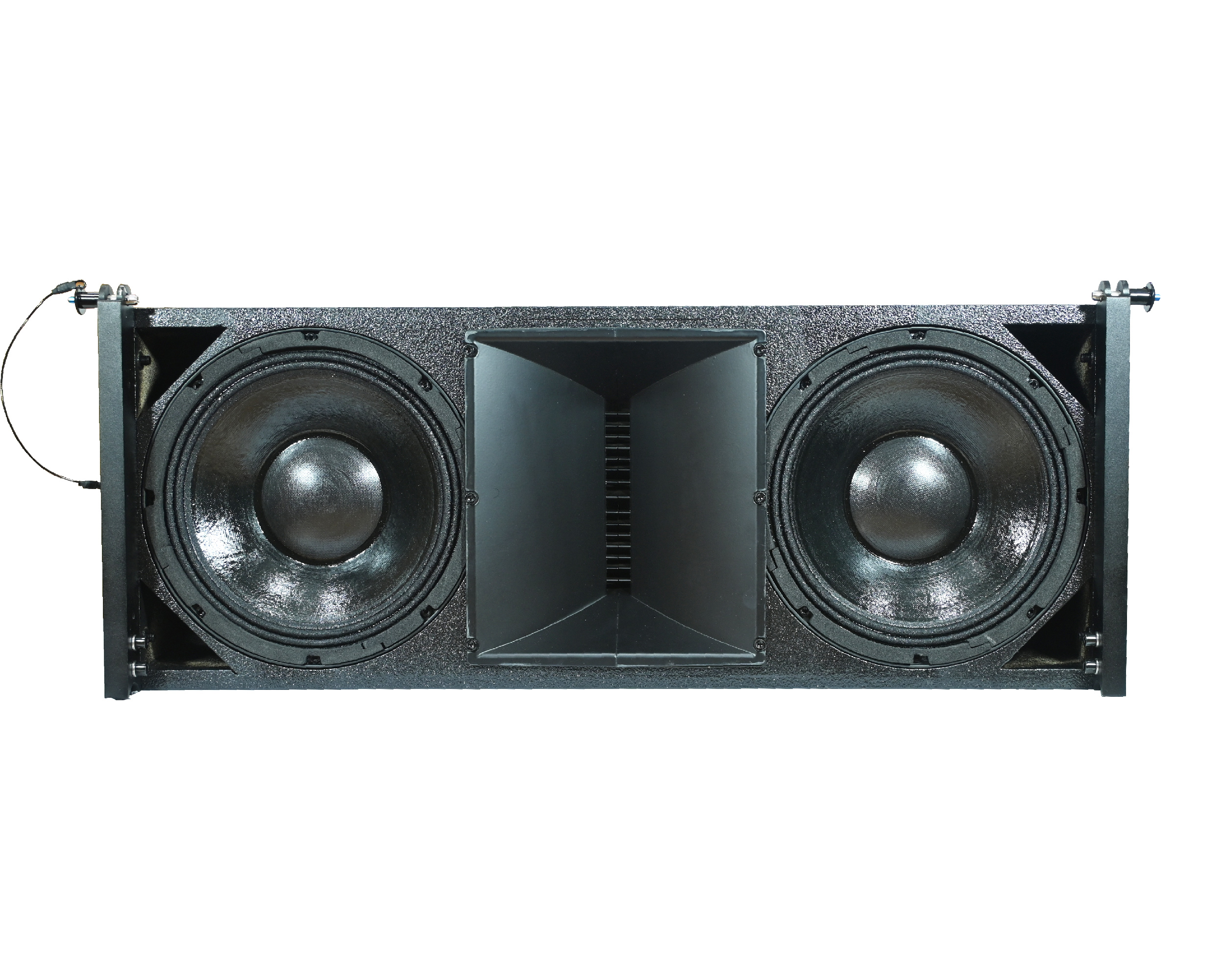

up to 16 cabinets. HDLA210 v2 is a 2.5-way design housing fitted with two 10" LF drivers and one 1.4" exit HF driver coupled to a patent line array horn, made of high-quality plywood, finished with polyurea waterproof paint. High-Quality Electronics parts used for Crossover to provide exceptional sound experience.


FEATURES
- High-quality plywood with wear-resistant and waterproof polyurea paint
- Exceptional sound quality, powerful response & long throw.
- High-grade & durable cabinet design.
- True 90°(-6dB) horizontal mid and HF pattern control.
- High power- maximum SPL 123dB continuous, 129dB Peak.
- High-quality passive crossover network for maximum reliability.
- Extra textured anti-scratch paint finish.
- Convenient for hanging and stacking
- Easy carry handles & heavy-duty protective grille.

HDLA210 V2

FREQUENCY RESPONSE

55Hz- 18kHz

DRIVERS

2X10” (250mm)/3” voice coil LF driver

1x1.4” (36mm)/ 3” voice coil HF driver

RATED POWER

800W

PEAK POWER

3200W

SENSITIVITY

101Db 1watt/1Metre

SPL

128dB

MAXIMUM SPL

134dB

IMPEDANCE



DISPERSION (-6dB)

Horizontal Coverage: 100°

Vertical Coverage: varies, Depending on array length and configuration

CROSSOVER

700Hz, 1.5kHz Passive

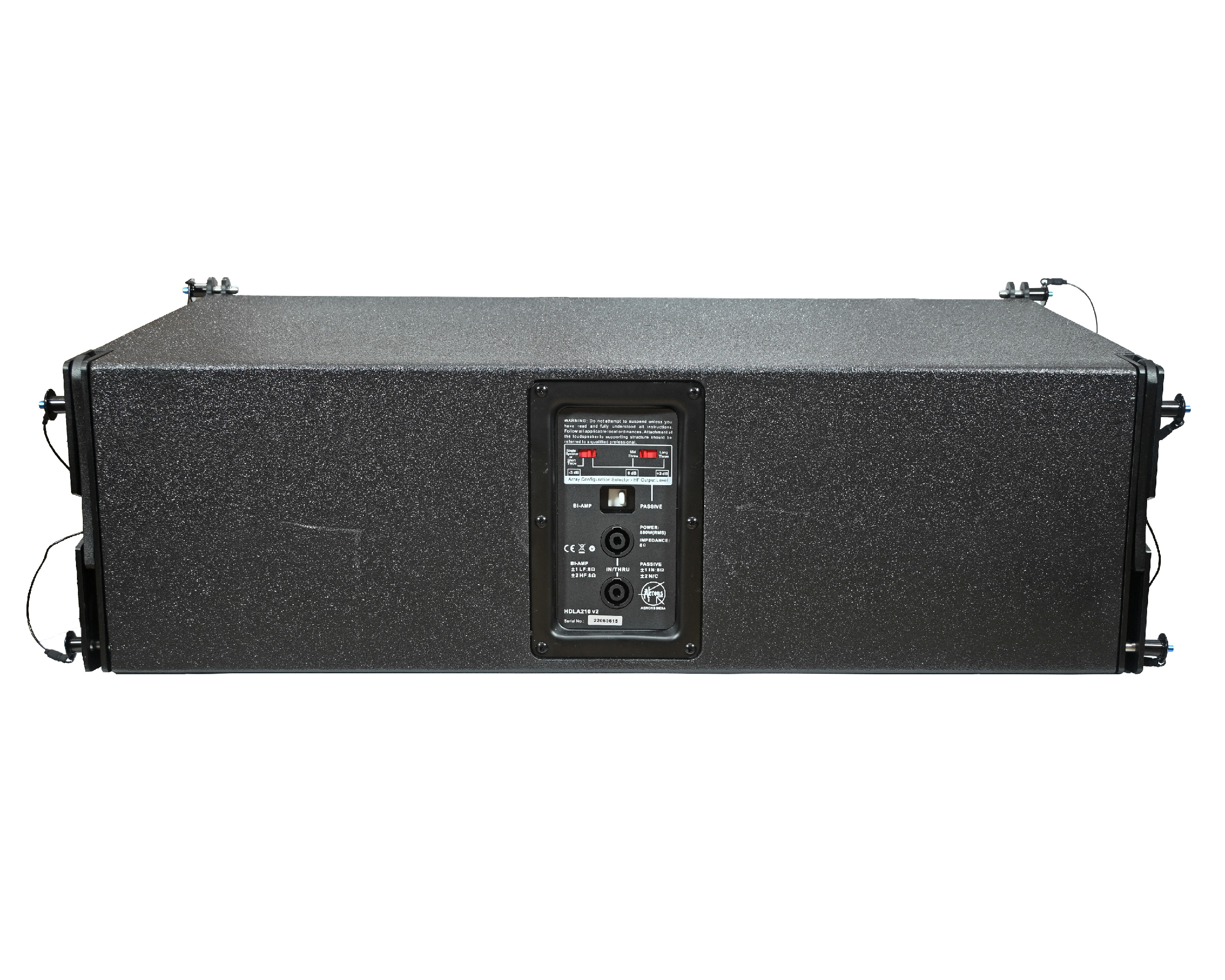

CONNECTORS

2XSpeakON NL4

DIMENSIONS

(W)770mmX(D)435mmX(H)300mm

WEIGHT

33KG
