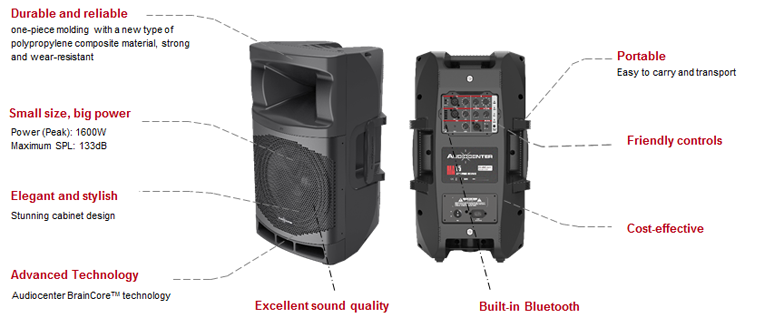

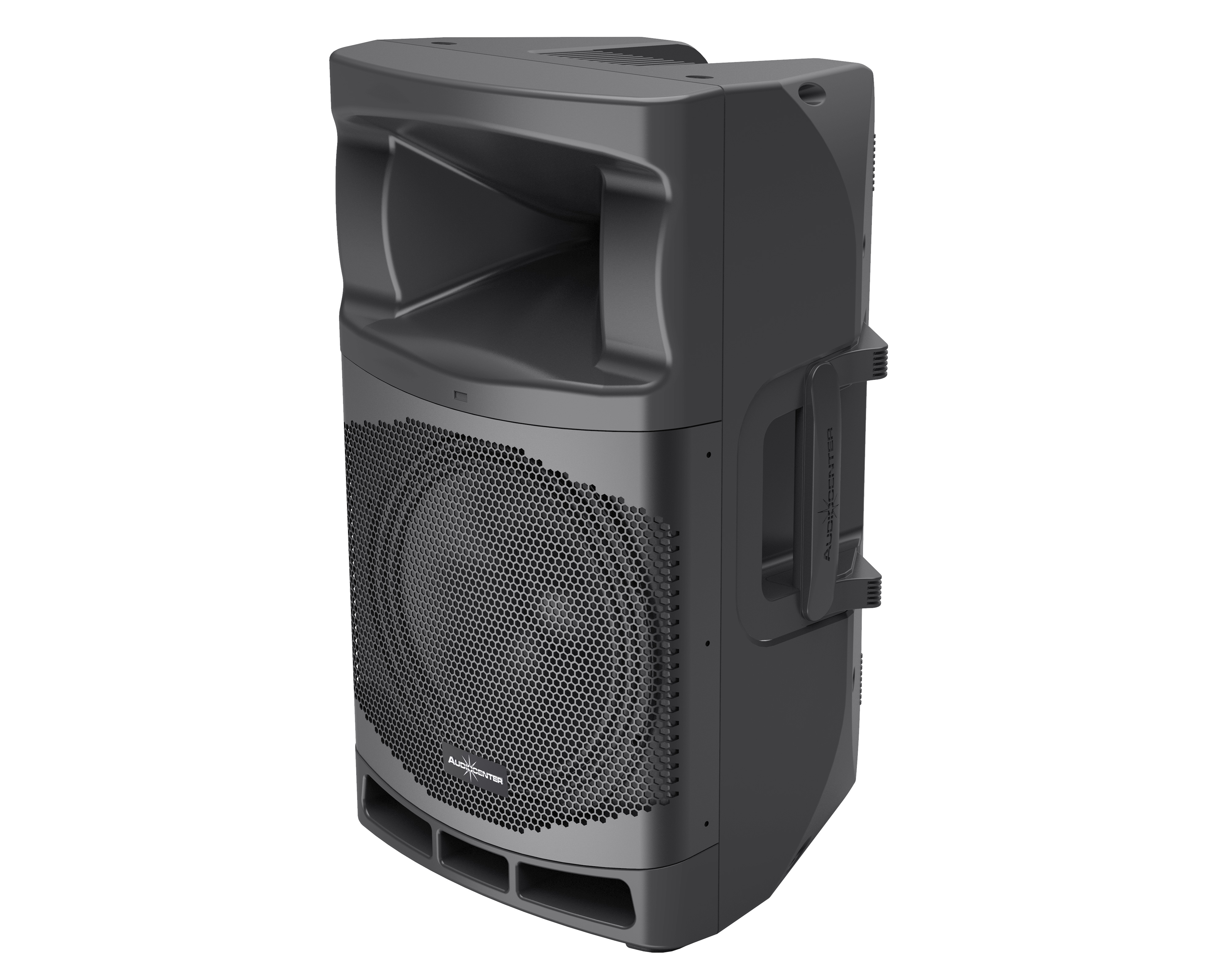

MA12 full-range DSP-controlled speaker is molded and made from new polypropylene composite material, with a fashionable design and supreme performance. Audiocenter BrainCore™ Technology provides the best sound quality by analyzing and processing an input signal, integrated Class D amplifier, and DSP module optimally, improving the audio performance of the system significantly. Built-in Bluetooth, link with various smart devices easily.
MA12 can be used as PA speakers and stage monitors. There are multiple ways of mounting and installation, for example, pole mount with a three-foot stand, or hanging installation.
|
Frequency Response (-6dB anechoic chamber) |
50Hz-20KHz |
|
Maximum Calculated SPL/1M |
131dB |
|
LF Driver |
Customized driver, 2.5” voice coil |
|
HF Driver |
Customized driver, 1” exit, 1.4” voice coil |
|
Horizontal Coverage Angle(Symmetrical) |
80° |
|
Vertical Coverage Angle(Symmetrical) |
50° |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power(Peak) |
1600W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20KHz(±1dB) |
|
Protection |
DC protection, short circuit protection, overheat protection,input overload protection, output overload protection,soft starter, overvoltage protection, undervoltage protection |
|
Cooling System |
Air convection |
|
DSP |
|
|
Processor |
96KHz signal sampling frequency,24bit precision |
|

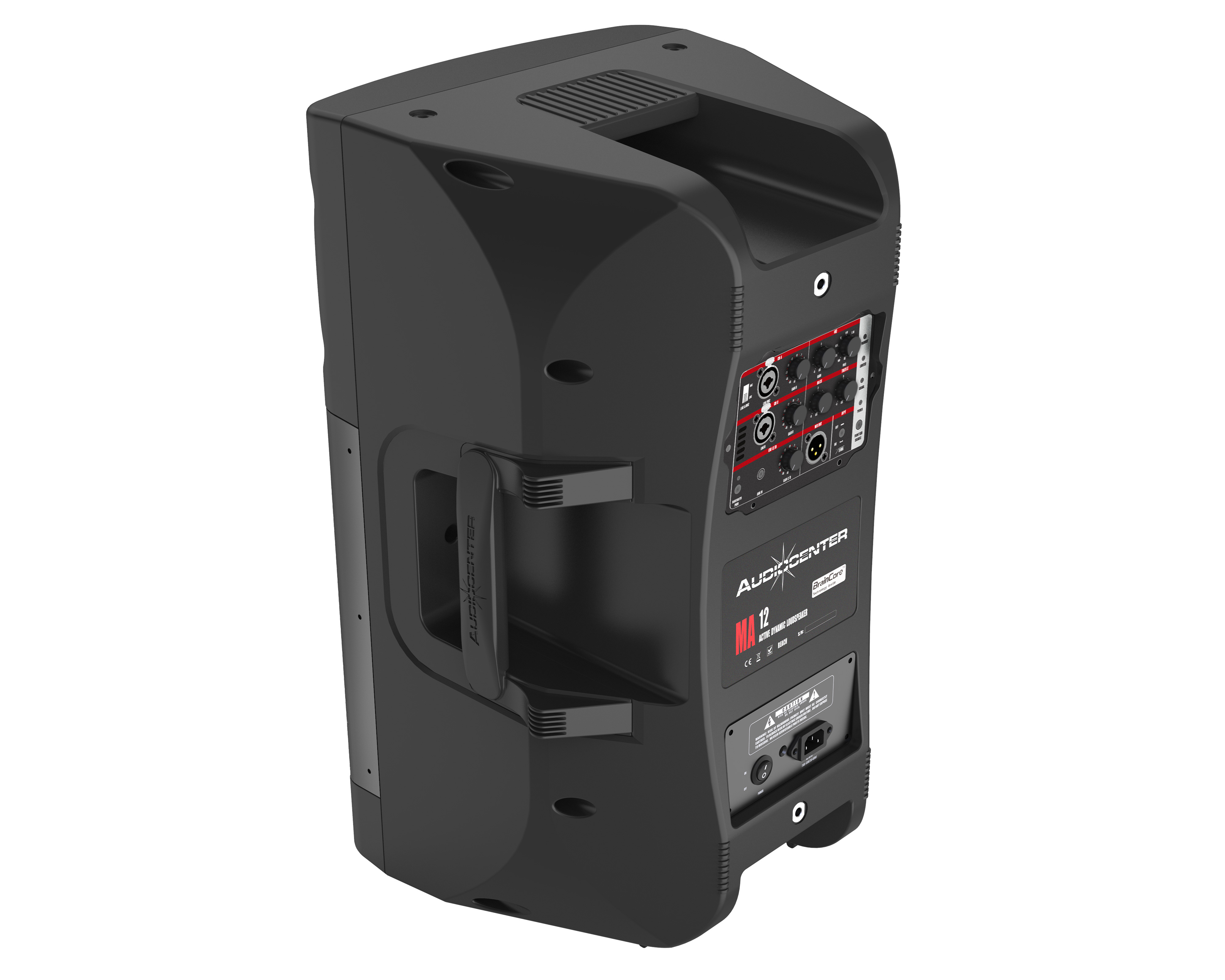

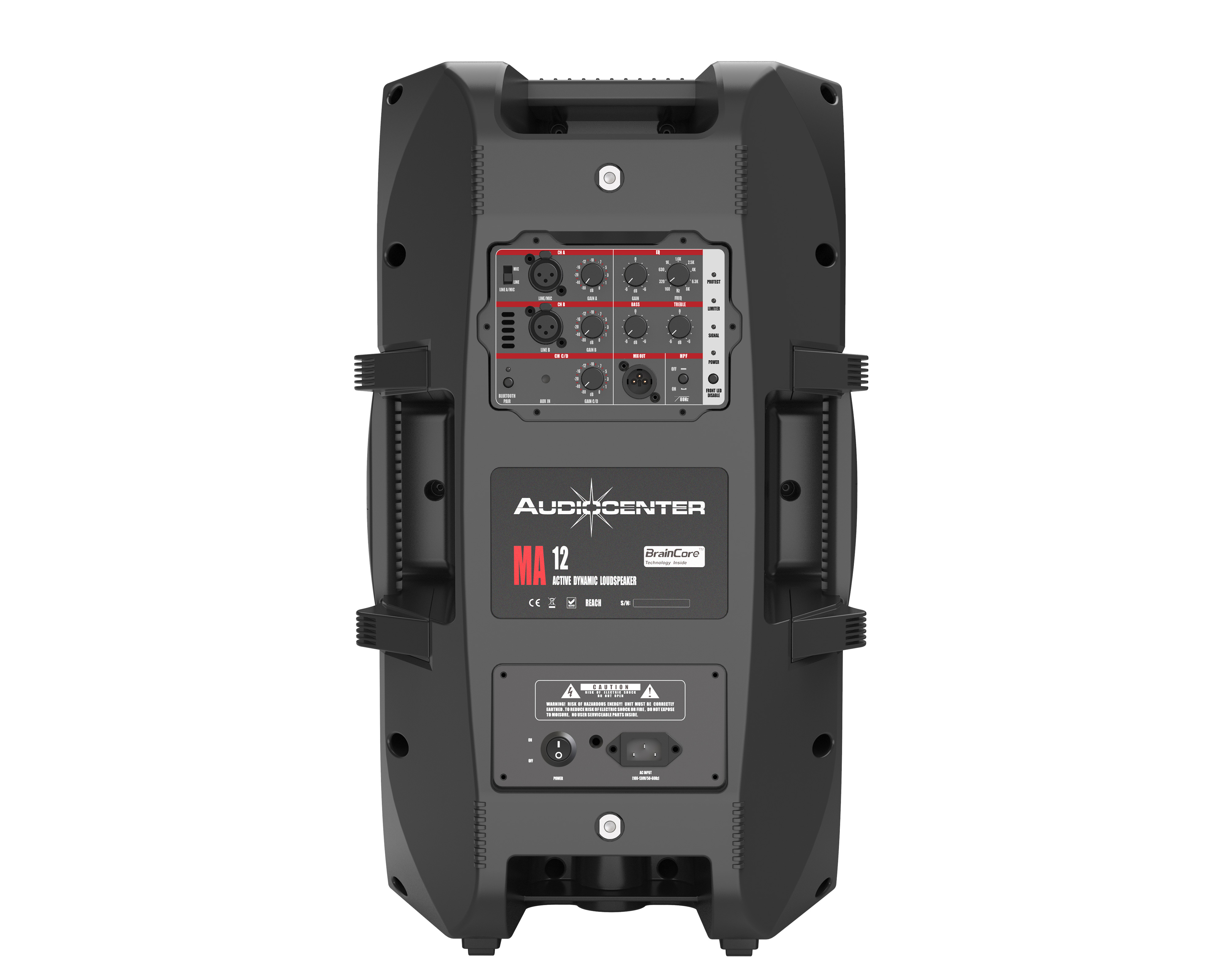

Output/Input |
|
|
Signal Input |
2×female XLR(Mono jack 6.35)、1×wireless bluetooth、1×Minijack 3.5 |
|
Signal Output |
1× male XLR |
|
Power Input |
3 pin plug |
|
Working Voltage |
100V-240V(±10%，50/60Hz） |
|
Cabinet |
|
|

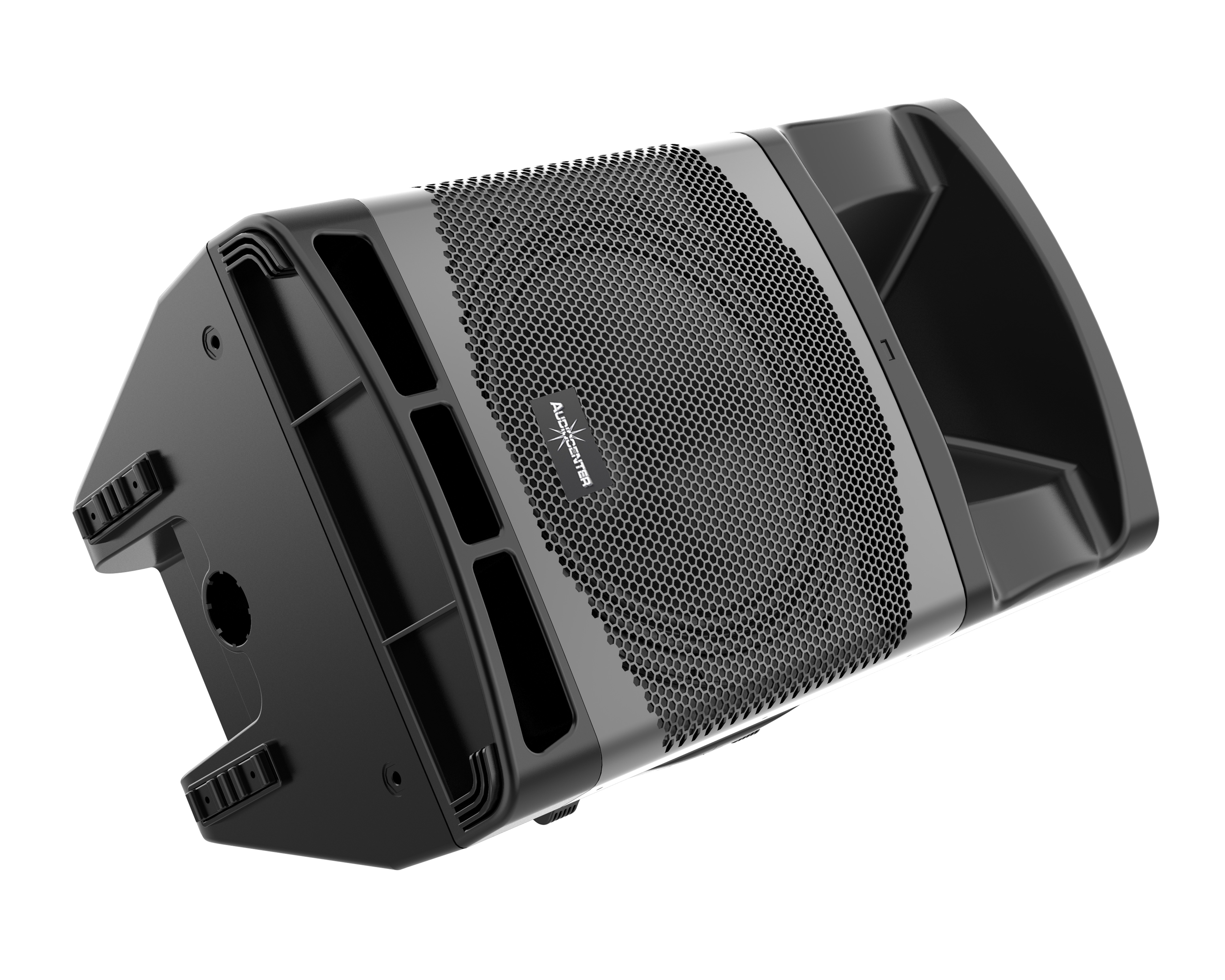

Monitor function |
Symmetrical 45° monitor angle |
|
Cabinet Color |
Black is standard and default color. Consult with Audiocenter sales team for other customized colors |
| Pole Mount | Φ35mm |
|
Cabinet |
New polypropylene composite material |
|
Dimension(W×H×D) |
345x610x352mm |
|
Net Weight |
14.0Kg |
