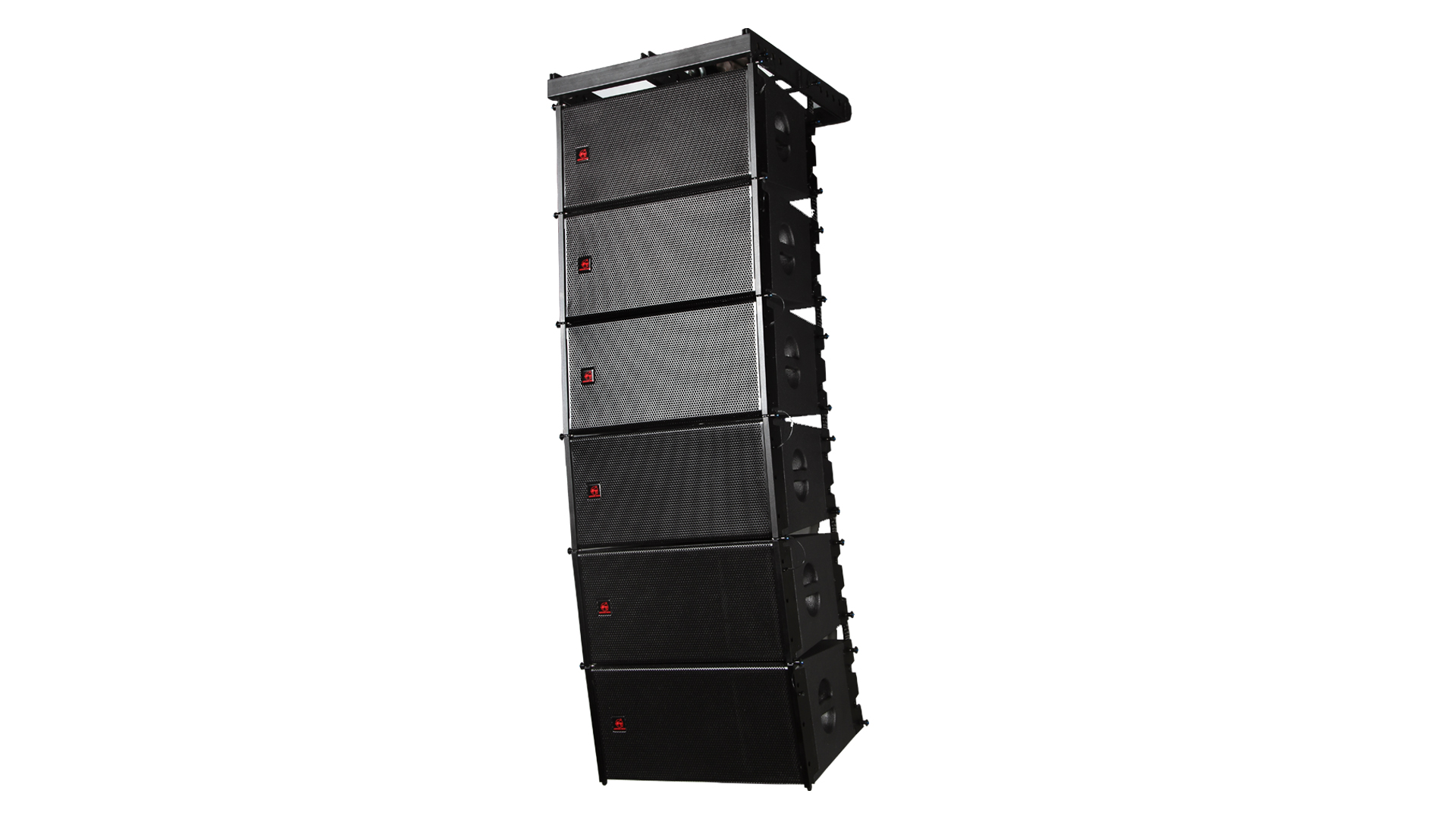

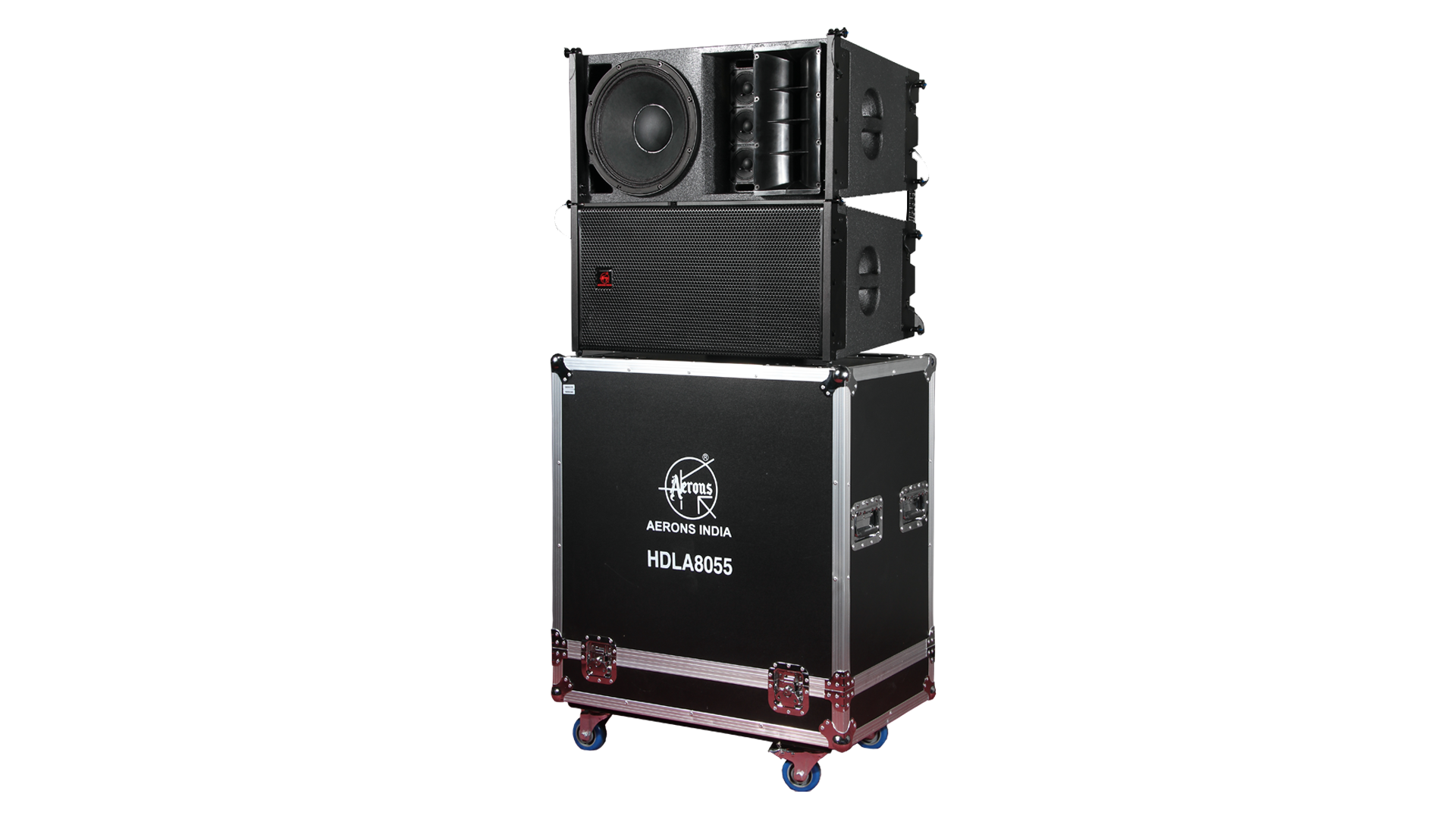

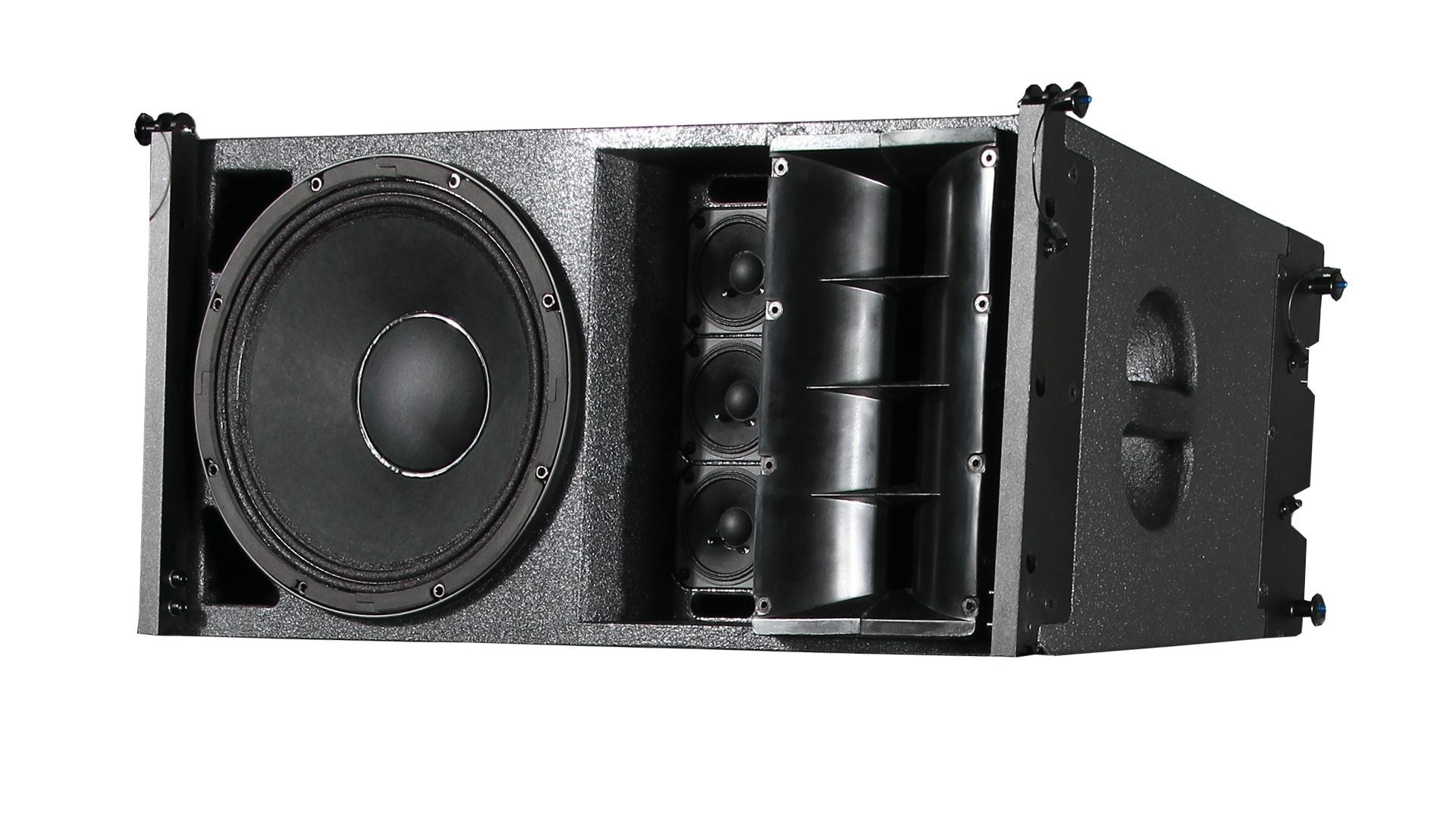

HDLA 8055 V2 is a line array loudspeaker for medium-scale sound reinforcement, fitted with a 1X12” neodymium LF driver, 3x3” neodymium MF drivers, and 2x1” neodymium HF driver with line array horn, made of high-quality plywood with polyurea waterproof paint. All rigging parts are made of aluminum alloy.
FEATURES
- High-quality plywood with wear-resistant and waterproof polyurea paint
- Exceptional sound quality, powerful response & long throw.
- High-grade & durable cabinet design.
- True 90°(-6dB) horizontal mid and HF pattern control.
- High power- maximum SPL 126dB continuous, 132dB Peak.
- High-quality passive crossover network for maximum reliability.
- Extra textured anti-scratch paint finish.
- Convenient for hanging and stacking
- Easy carry handles & heavy-duty protective grille.
DRIVERS
2×1＂(25mm)/1.7＂voice coil neodymium HF
3×3＂(83mm)/0.8＂ voice coil neodymium MF
1×12＂(300mm)/3＂ voice coil neodymium LF
Rated Power: 800W RMS, 3200W Peak
Sensitivity: 100 dB 1watt/1metre
Maximum SPL: 126 dB continuous,132dB peak
Impedance: 8 ohms nominal
Dispersion: Horizontal coverage:100°, Vertical coverage: Varies, depending on array length and configuration.
Crossover: 1.5KHz, 2.2KHz
Dimension: (W)695mm×(D)435.mm×(H)347mm
Weight: 32.7kg
Frequency Response: 55Hz-18kHz
Connectors: 2× Speakon NL4
