TT LA112
3-WAY LINE ARRAY
COAXIAL HF

  • 1X12” (300mm)/3.5” voice coil LF driver
  • 1x1.4” (36mm)/ 3.5” voice coil MF driver
  • 1x1.4” (36mm)/1.7” voice coil HF driver
  • RATED POWER: 800W
  • PEAK POWER: 3200W
  • SENSITIVITY: 98Db 1watt/1Metre
  • FREQUENCY RESPONSE: 50Hz- 20kHz ±3dB
  • MAXIMUM SPL: 133dB





                         WHATSAPP CATALOG AND PRICE

TT LA112

The TT LA112 is a small and medium scale line array loudspeaker for long-throw distance scale sound reinforcement 3-way design, one 12" Neodymium LF driver and one 1.4" exit throat coaxial
neodymium MF and HF unit with special line array horn, made of high-quality plywood with polyurea waterproof paint.


FEATURES
- High-quality plywood with wear-resistant and waterproof polyurea paint
- Exceptional sound quality, powerful response & long throw.
- Neodymium coaxial MF and HF unit and Neodymium woofer
- High-grade & durable cabinet design.
- 3-way design
- Small Cabinet, Lightweight, High SPL.
- High-quality passive crossover network for maximum reliability.
- Extra textured anti-scratch paint finish.

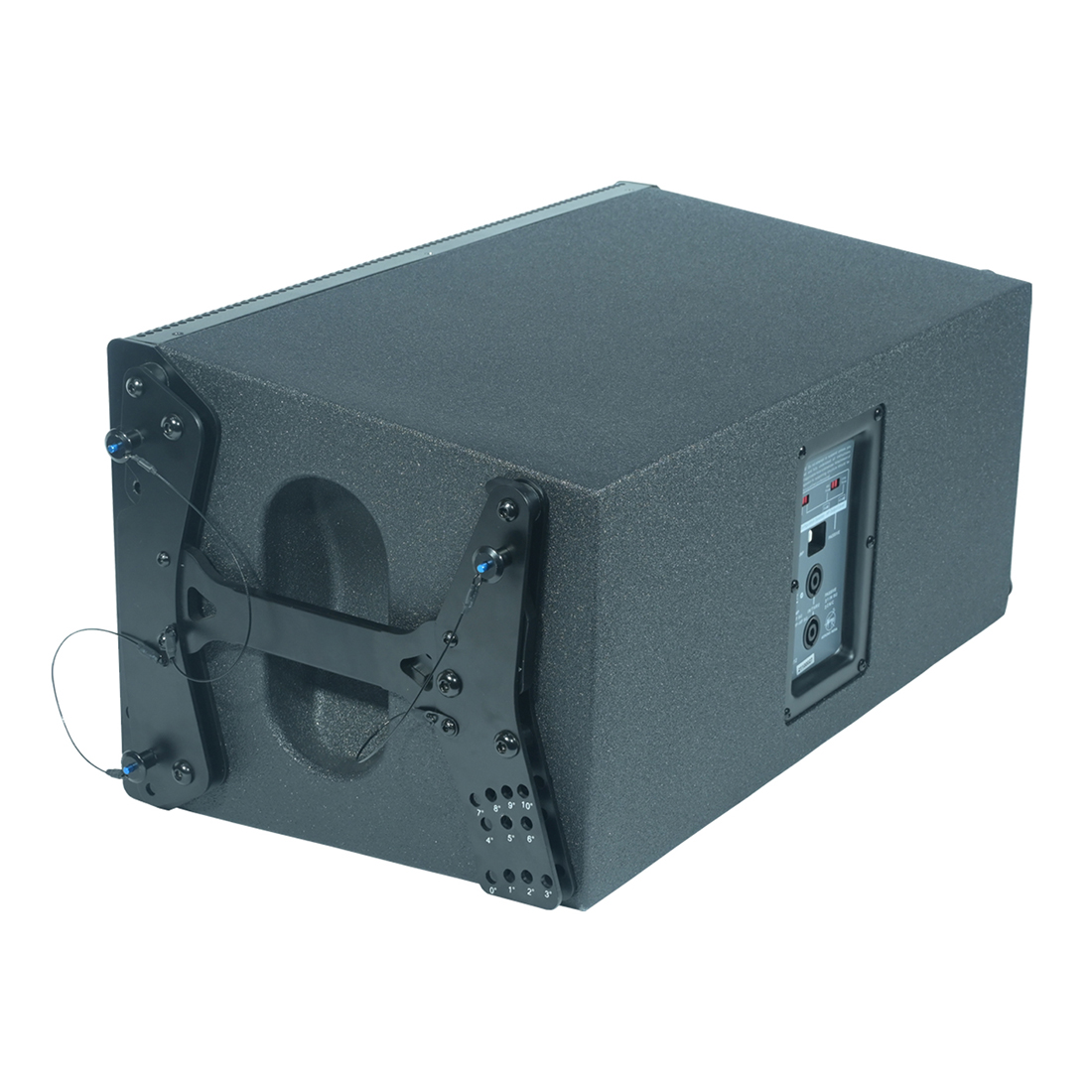

- Convenient for hanging and stacking
- Top hat fitting for tripod

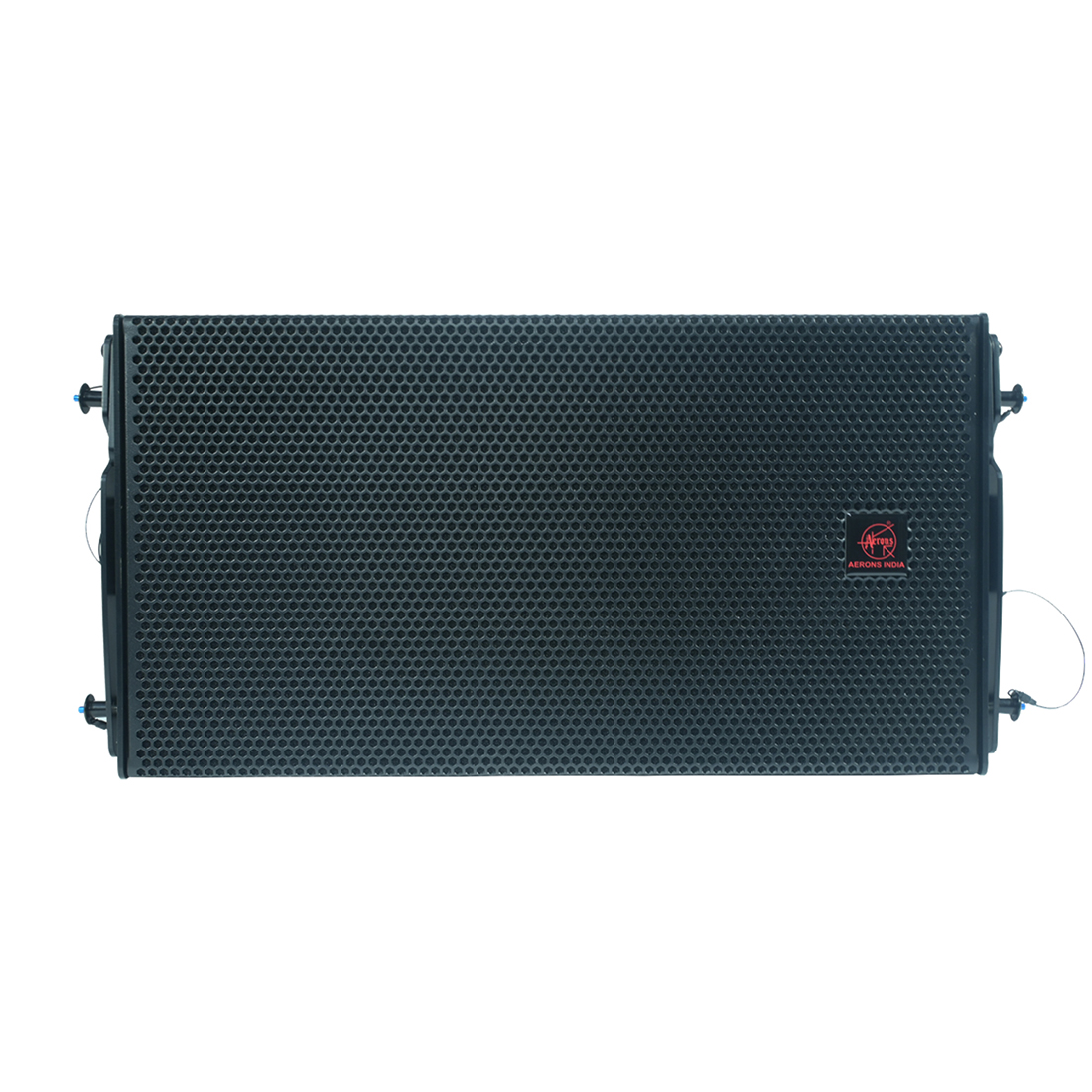

- Easy carry handles & heavy-duty protective grille.

TT LA112

FREQUENCY RESPONSE

50Hz- 20kHz ±3dB

DRIVERS

1X12” (300mm)/3.5” voice coil LF driver



1x1.4” (36mm)/ 3.5” voice coil MF driver



1x1.4” (36mm)/1.7” voice coil HF driver

RATED POWER

800W

PEAK POWER

3200W

SENSITIVITY

98Db 1watt/1Metre

SPL

127dB

MAXIMUM SPL

133dB

IMPEDANCE

8Ω

DISPERSION (-6dB)

100°

CROSSOVER

700Hz, 6kHz Passive

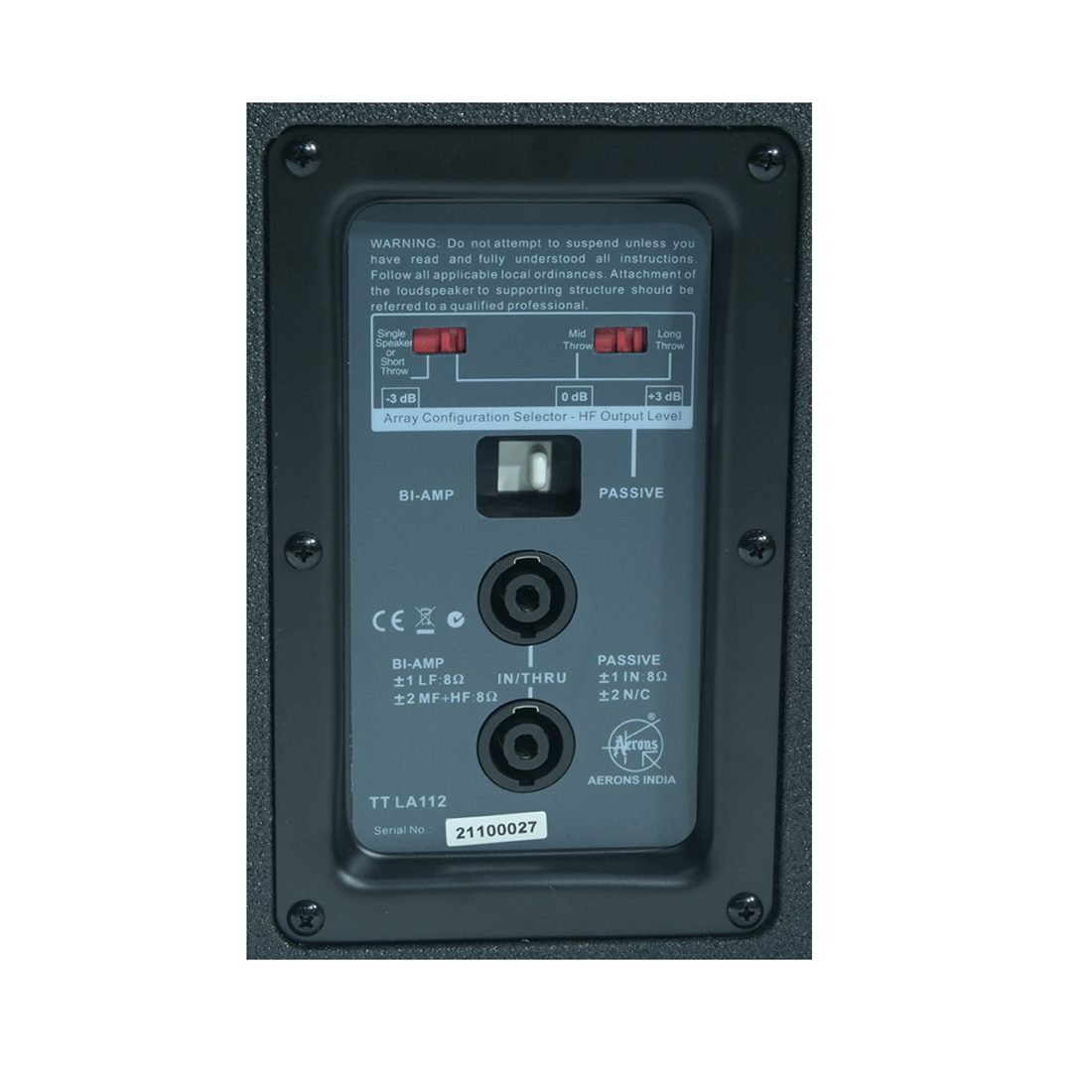

CONNECTORS

2XSpeakON NL4

DIMENSIONS

(W)650mmX(D)380mmX(H)330mm

WEIGHT

28KG
